Retrieve S3D .vue Cable Lengths and Paths from S3D
1. Expand the SmartPlant menu on the top ribbon and select Retrieve...

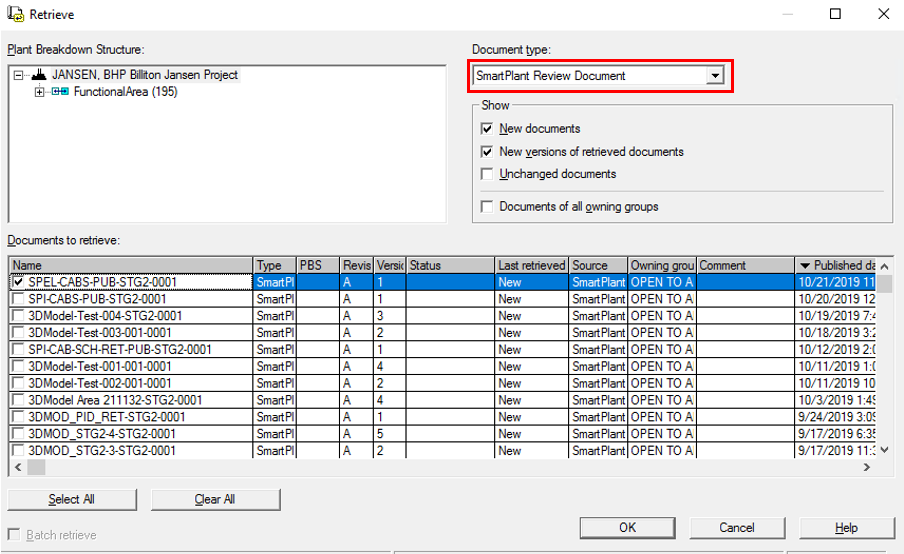

2. Expand the Document type: dropdown menu and select SmartPlant Review Document.
3. Filter or sort the documents you want to display and click OK.

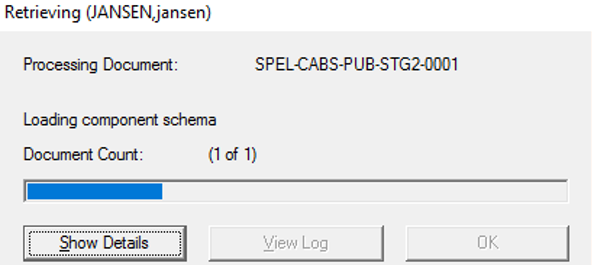

Result: The retrieval progress bar is displayed followed by a message of process completion.

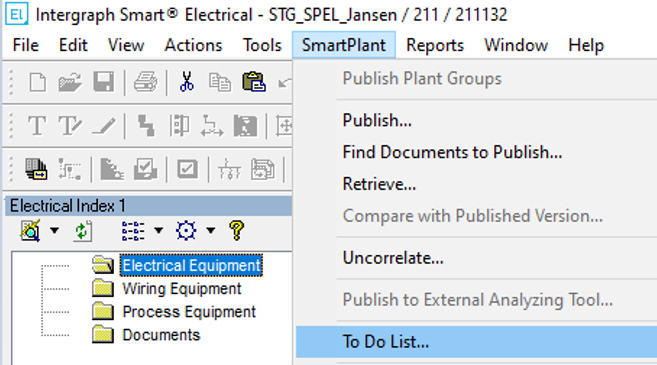

4. Expand the SmartPlant menu on the top ribbon and select To Do List...

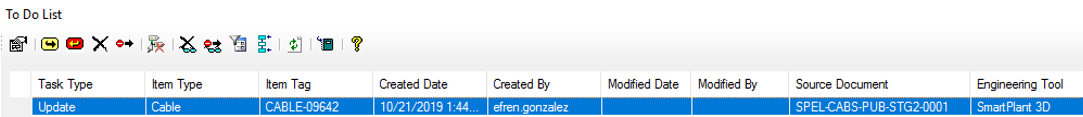

5. Find the target document in the To Do List.

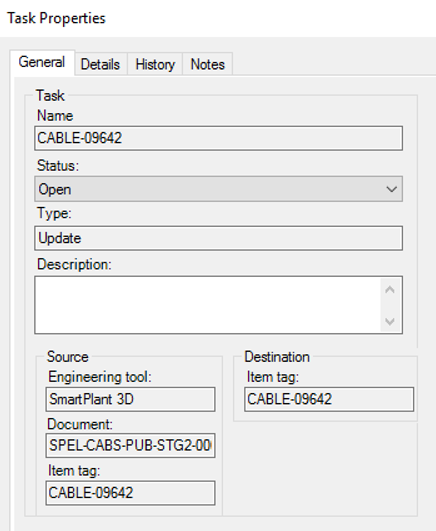

In Properties, check the values coming from S3D.
6. Select the task and click Run

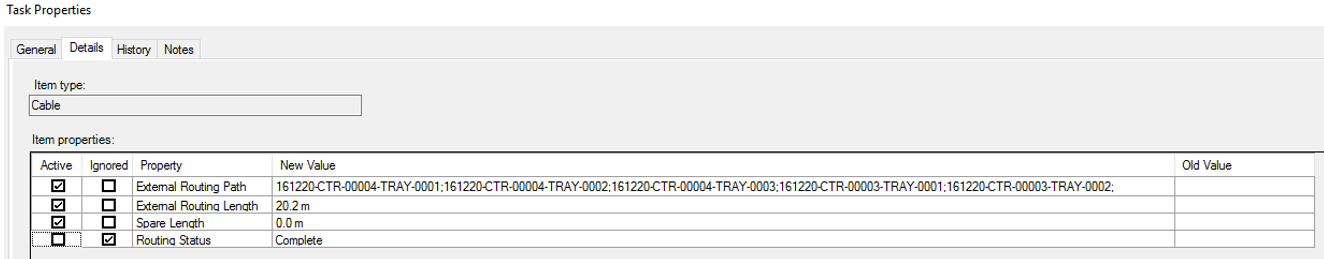

7. Check retrieved data in the common properties of the cable.
